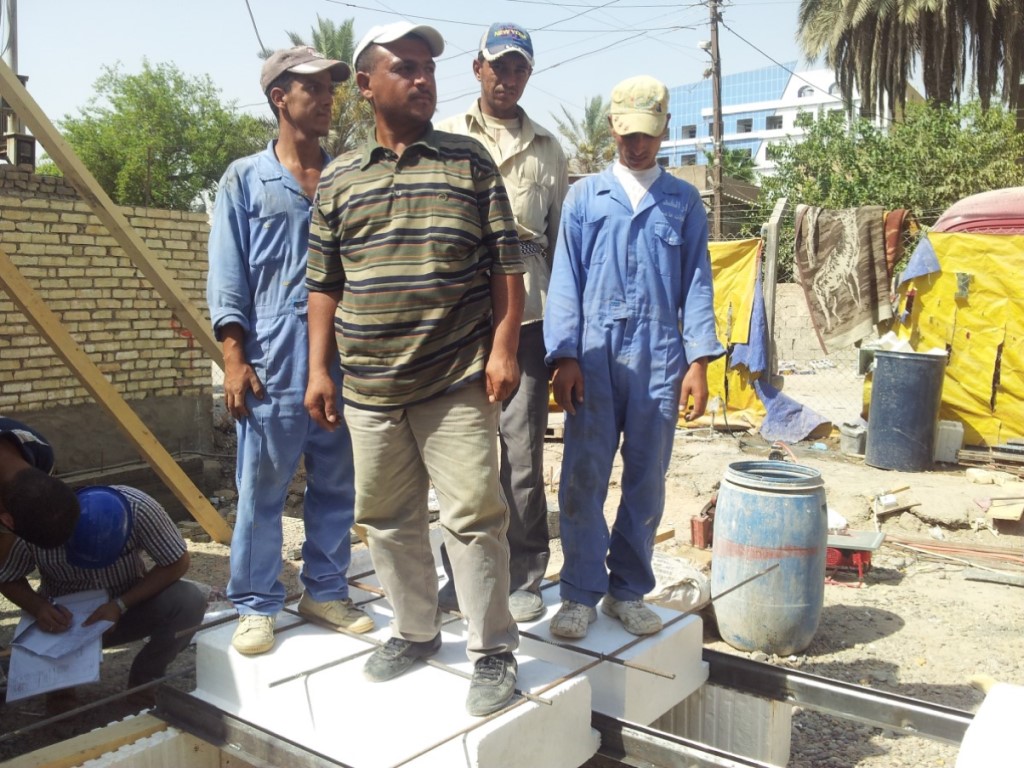

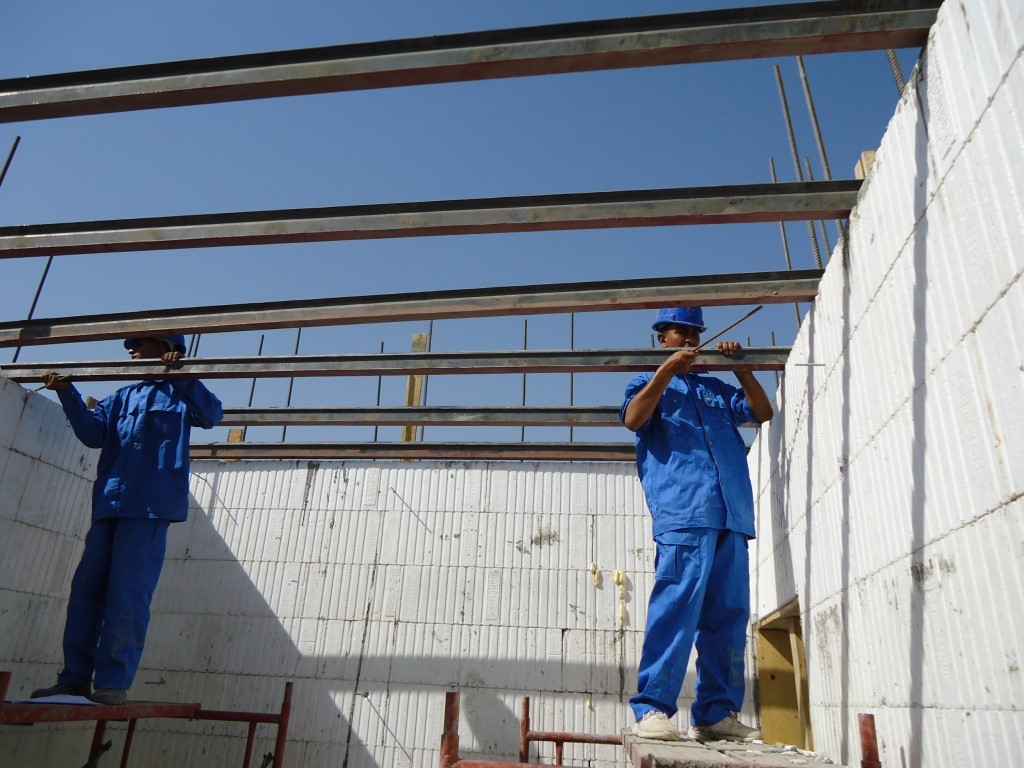

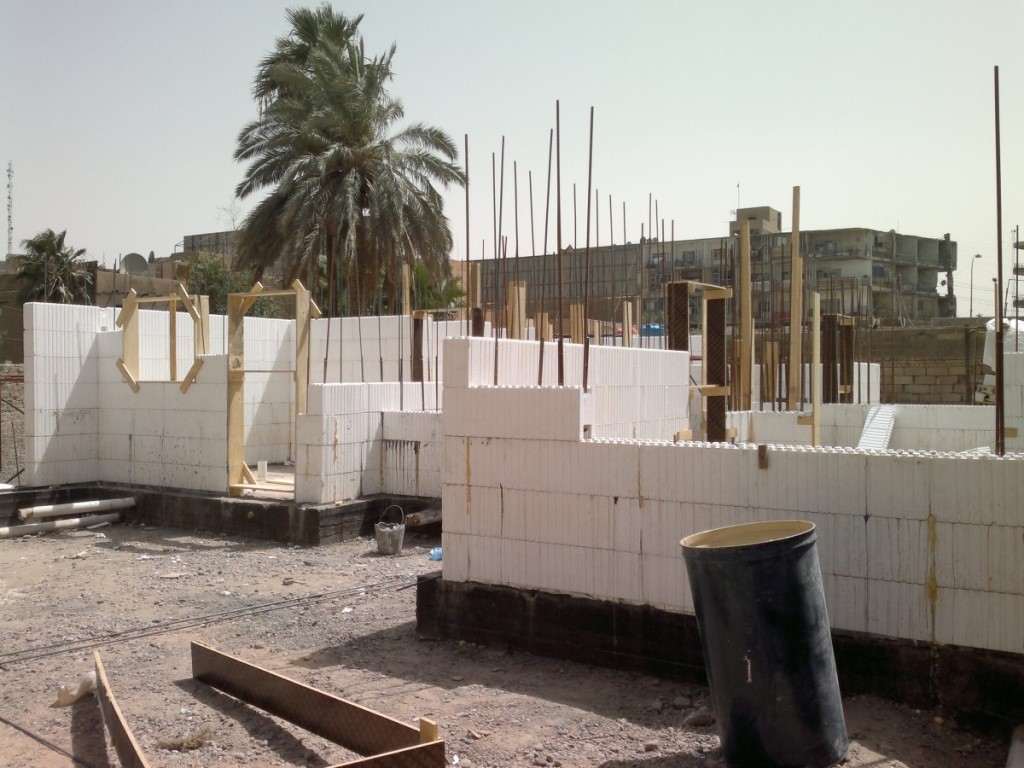

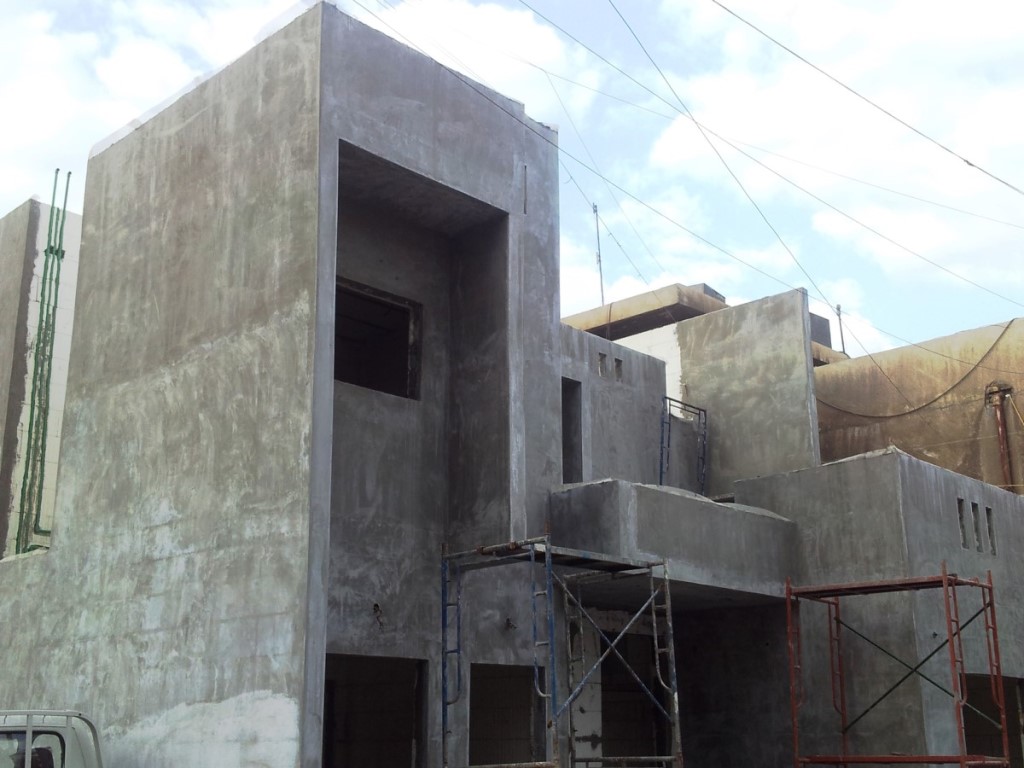

ICF HOUSE CONSTRUCTION

Project location: Kahramana,Baghdad, Iraq

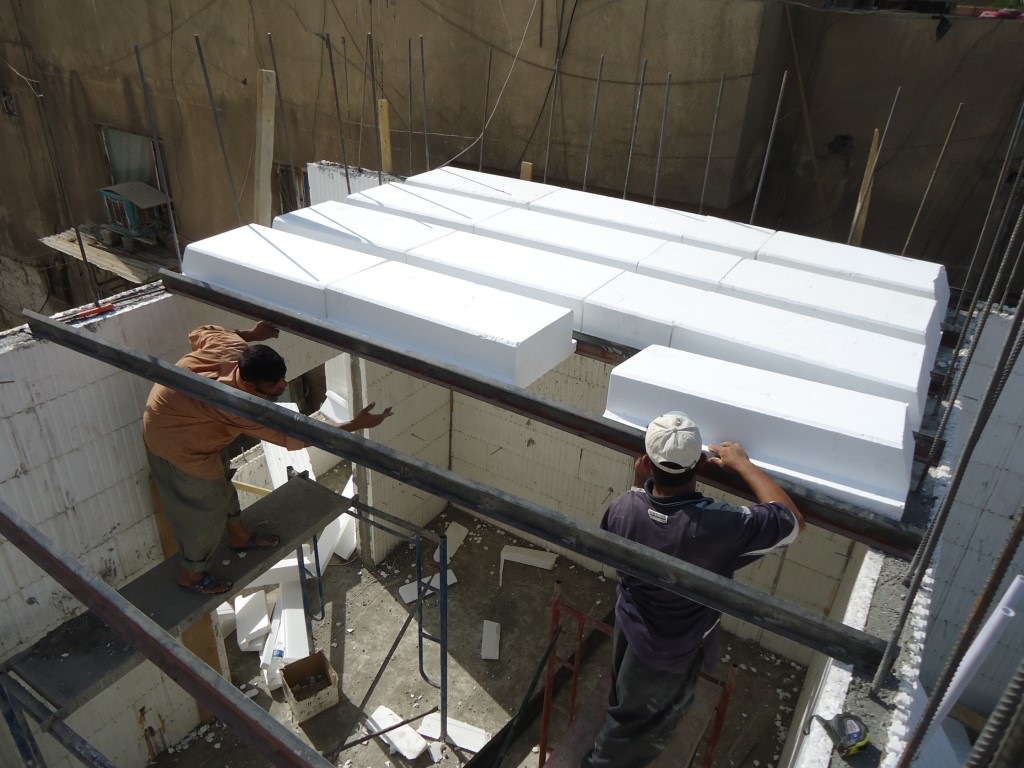

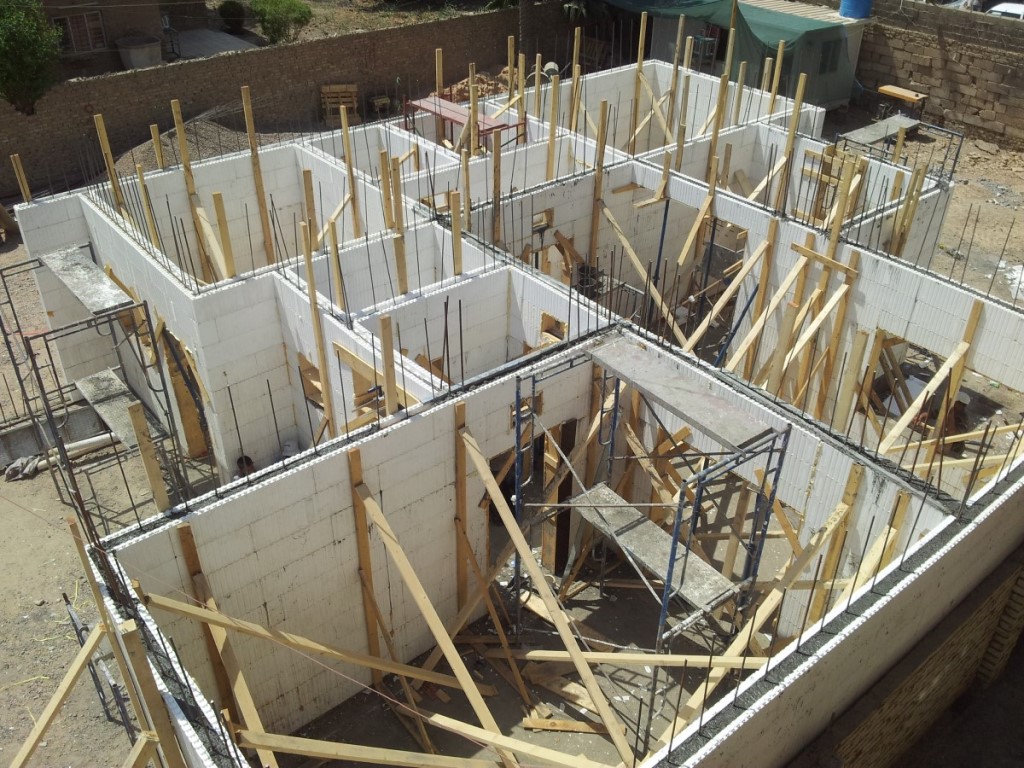

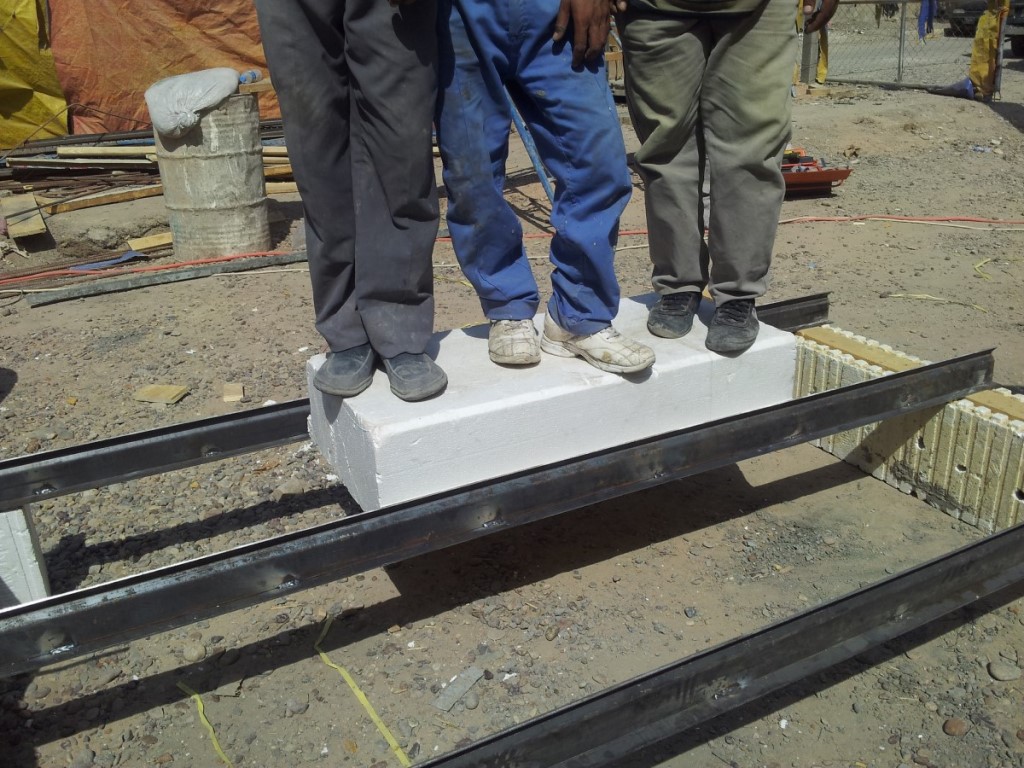

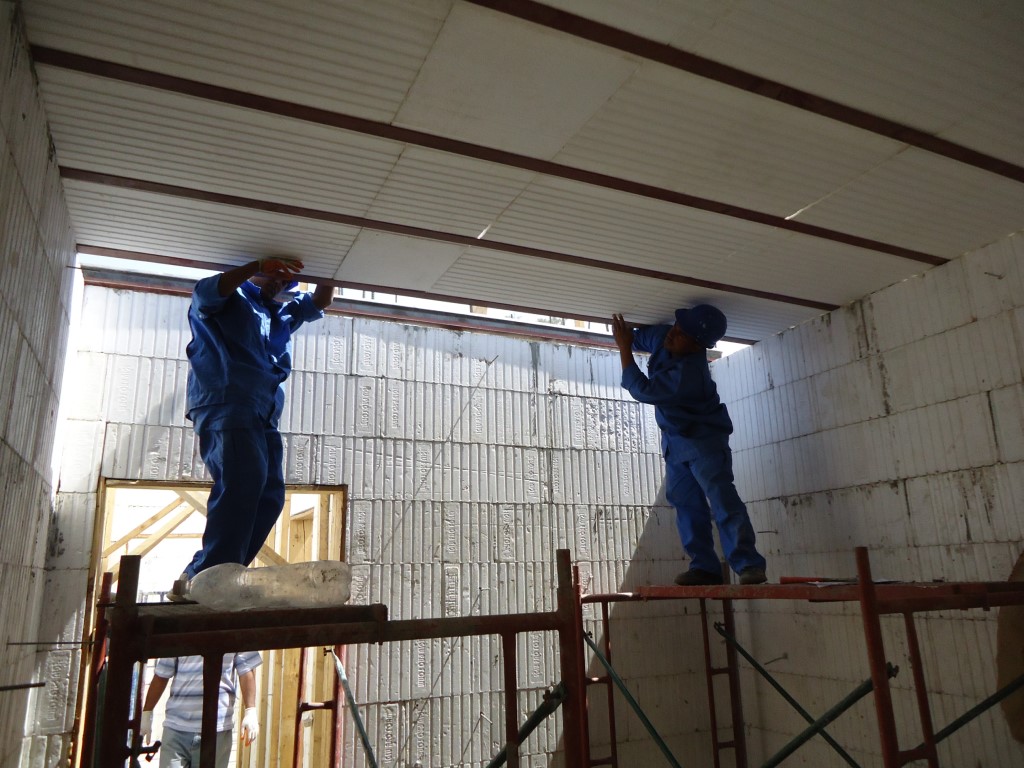

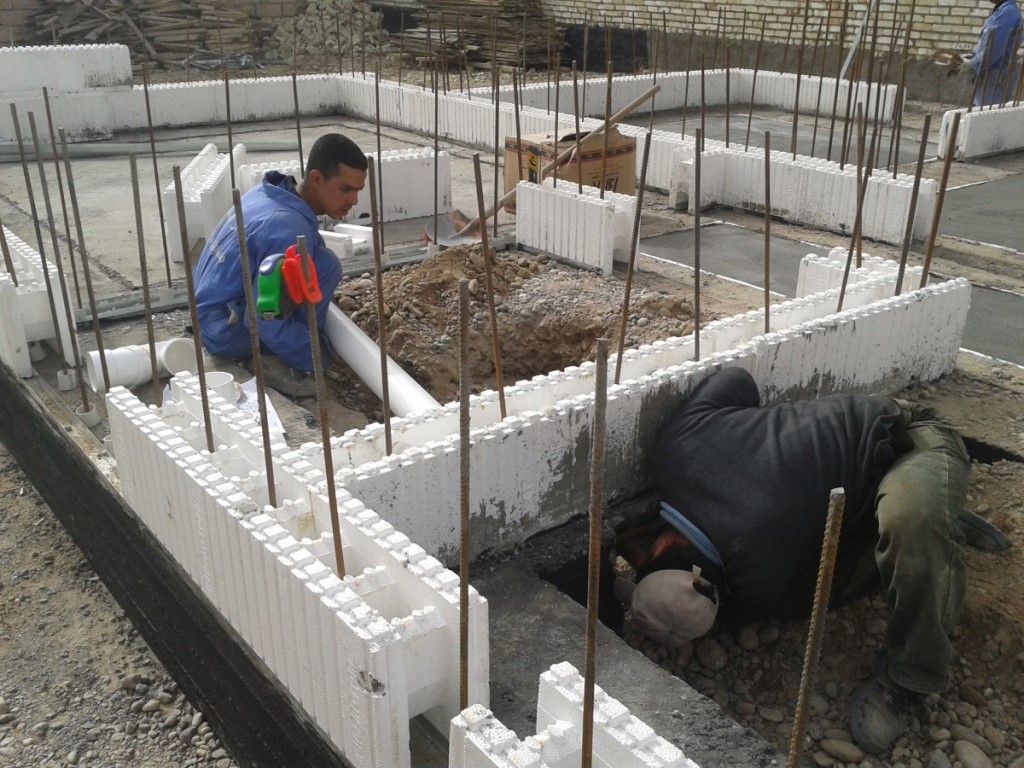

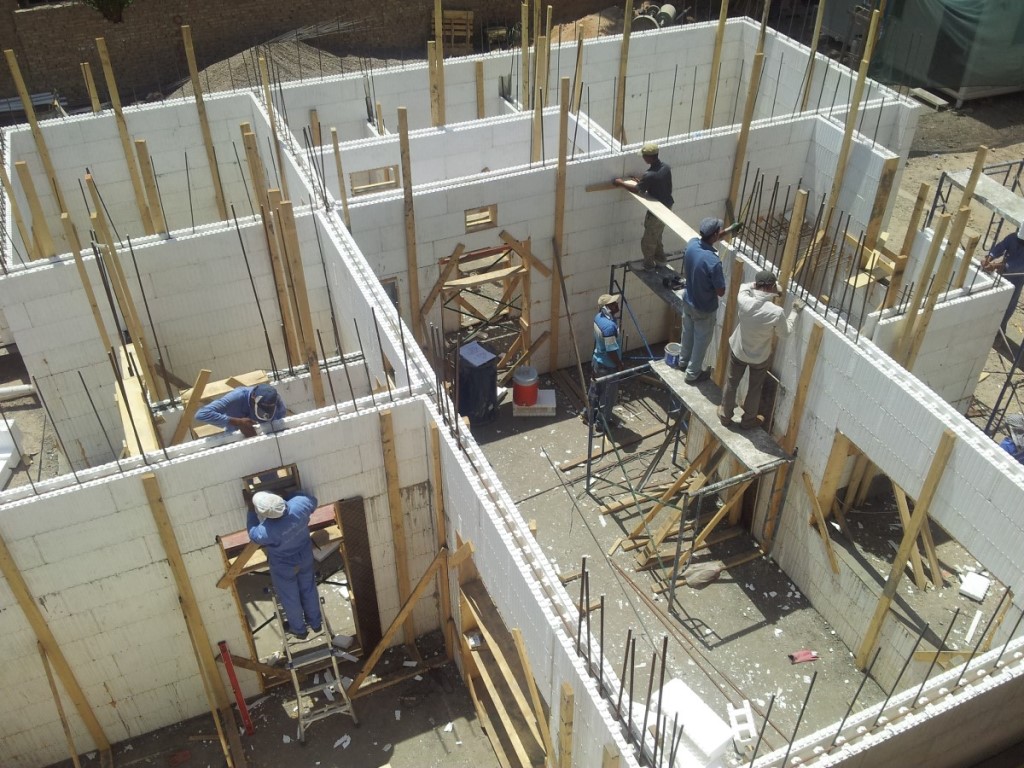

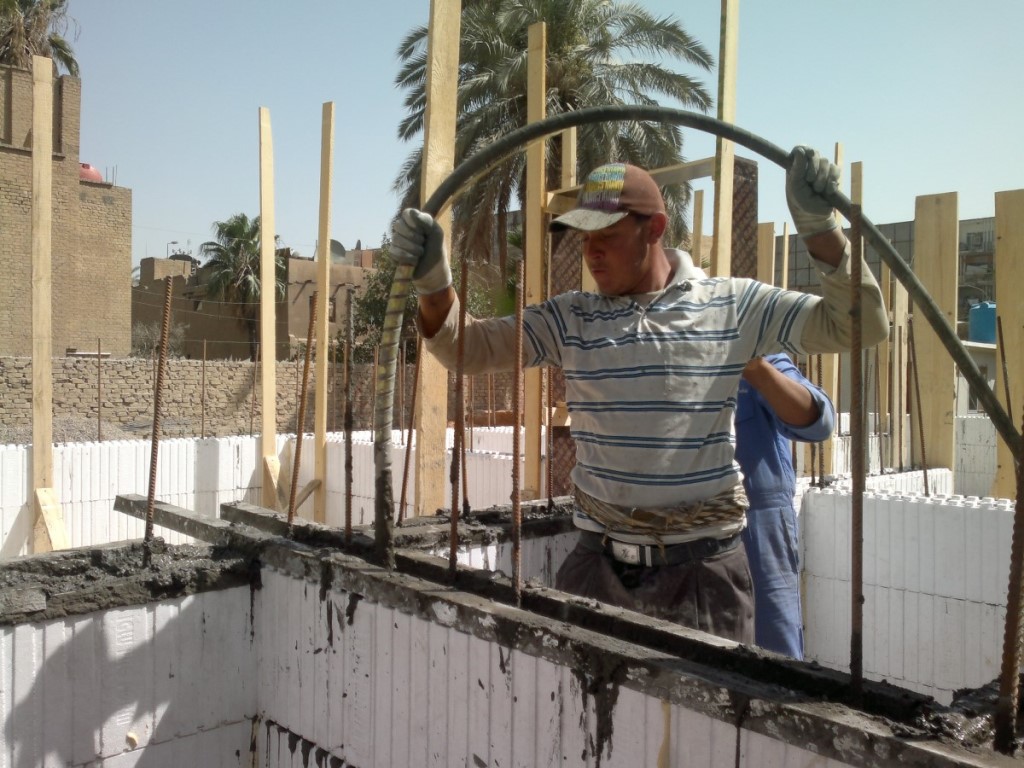

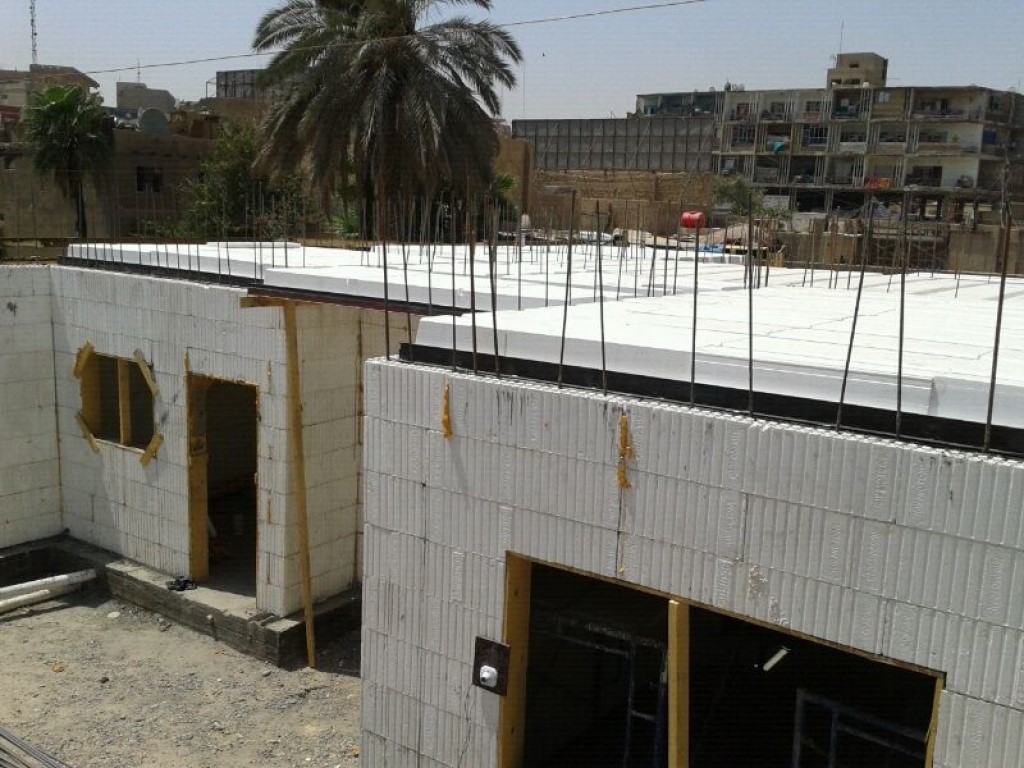

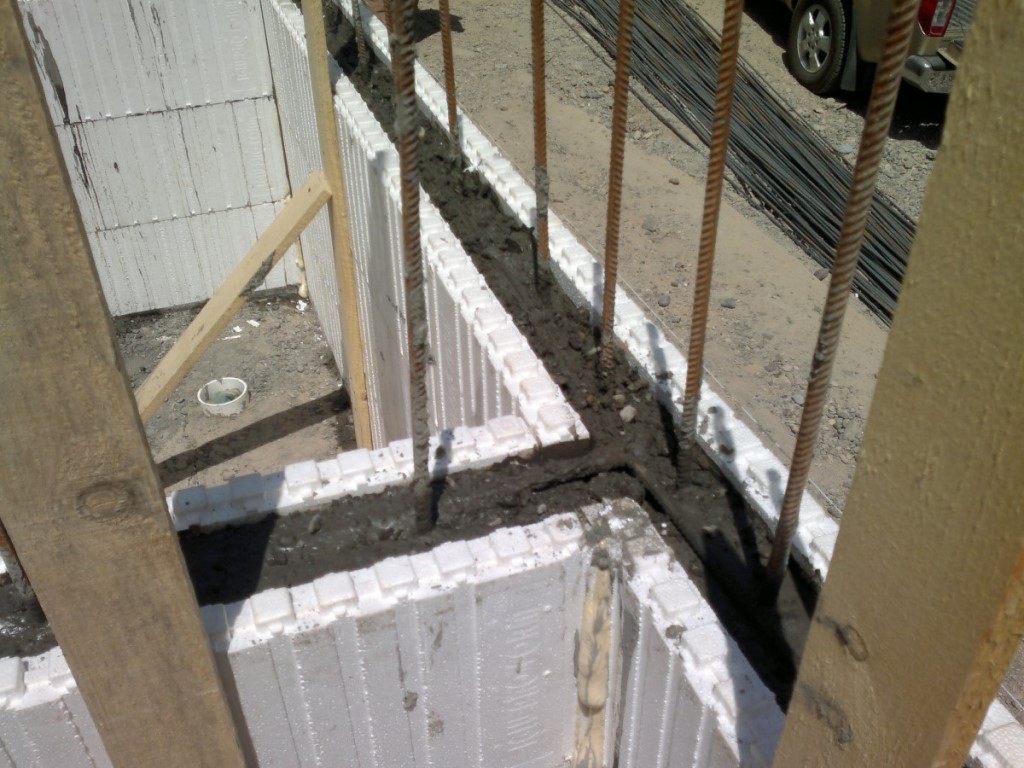

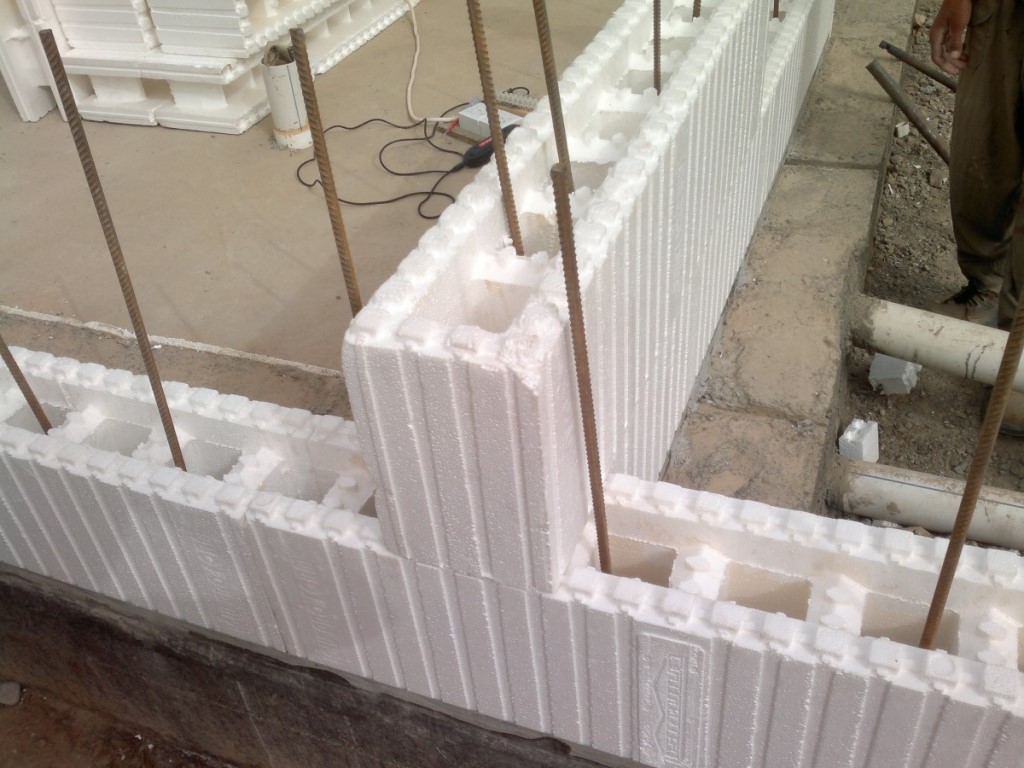

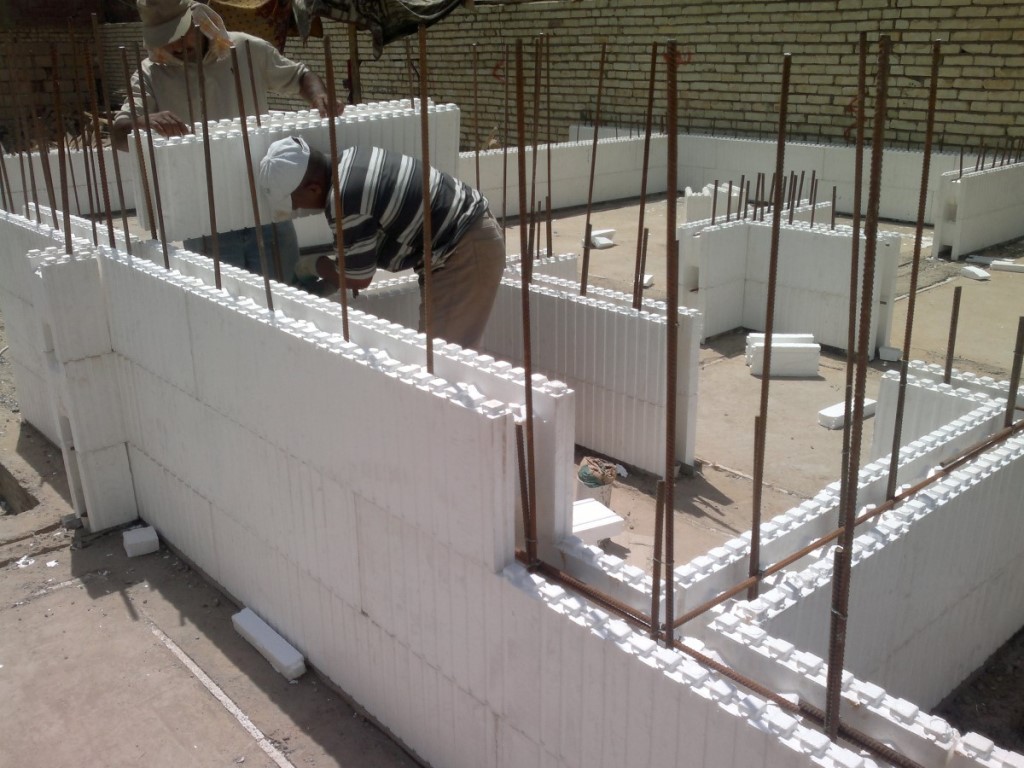

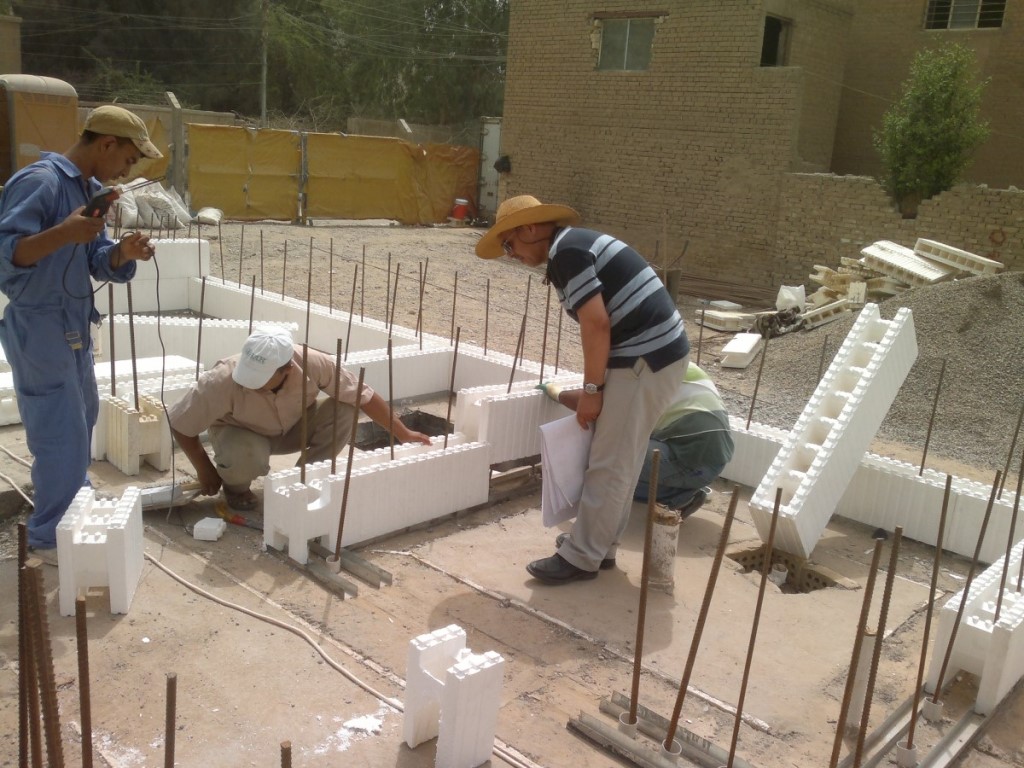

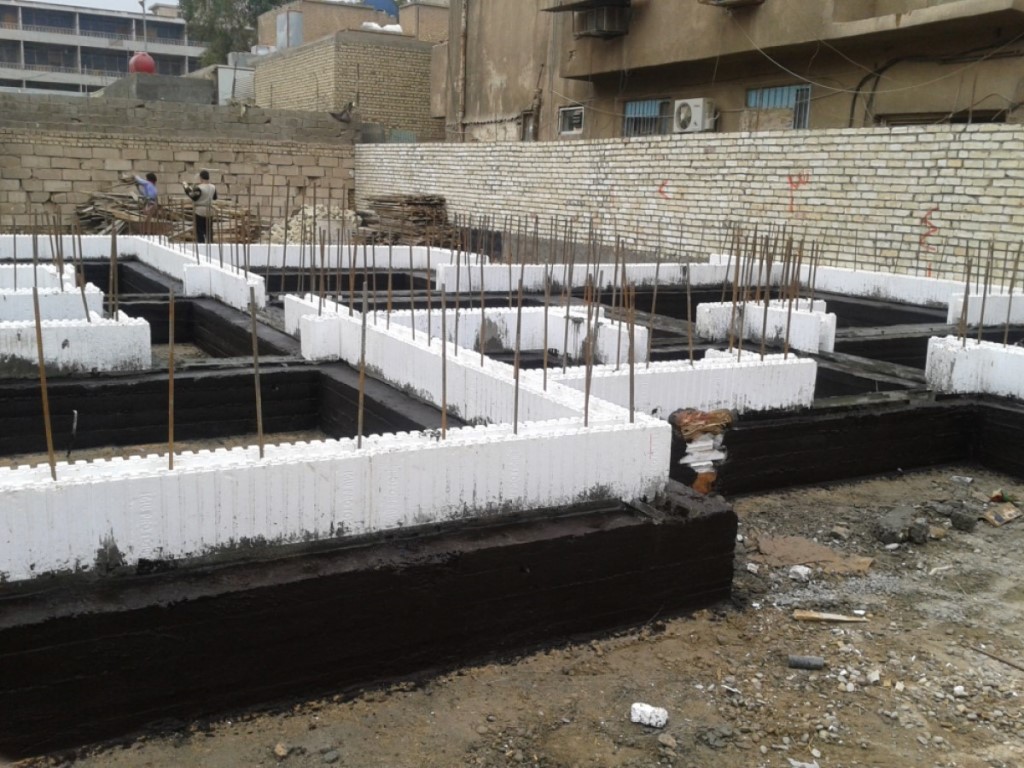

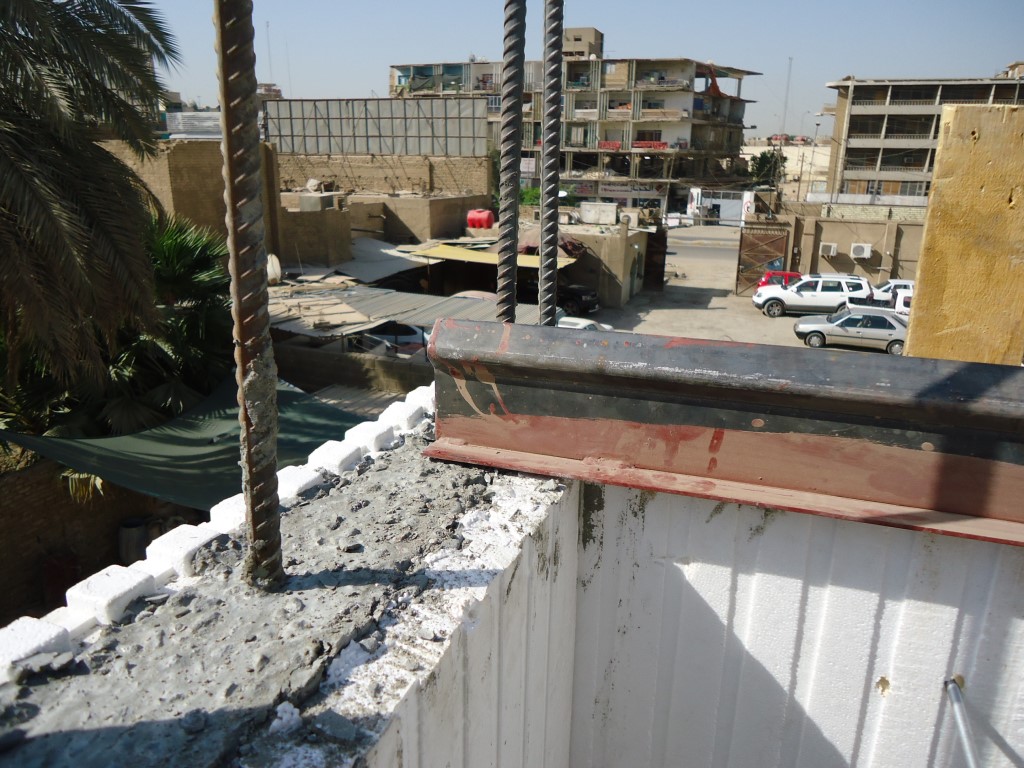

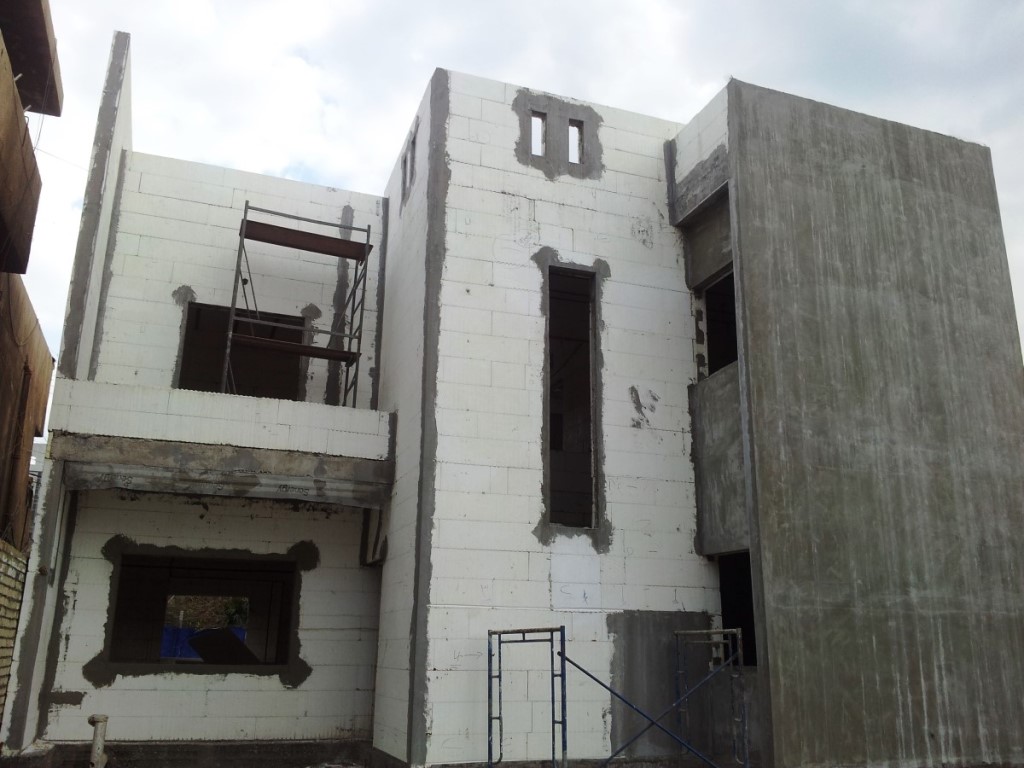

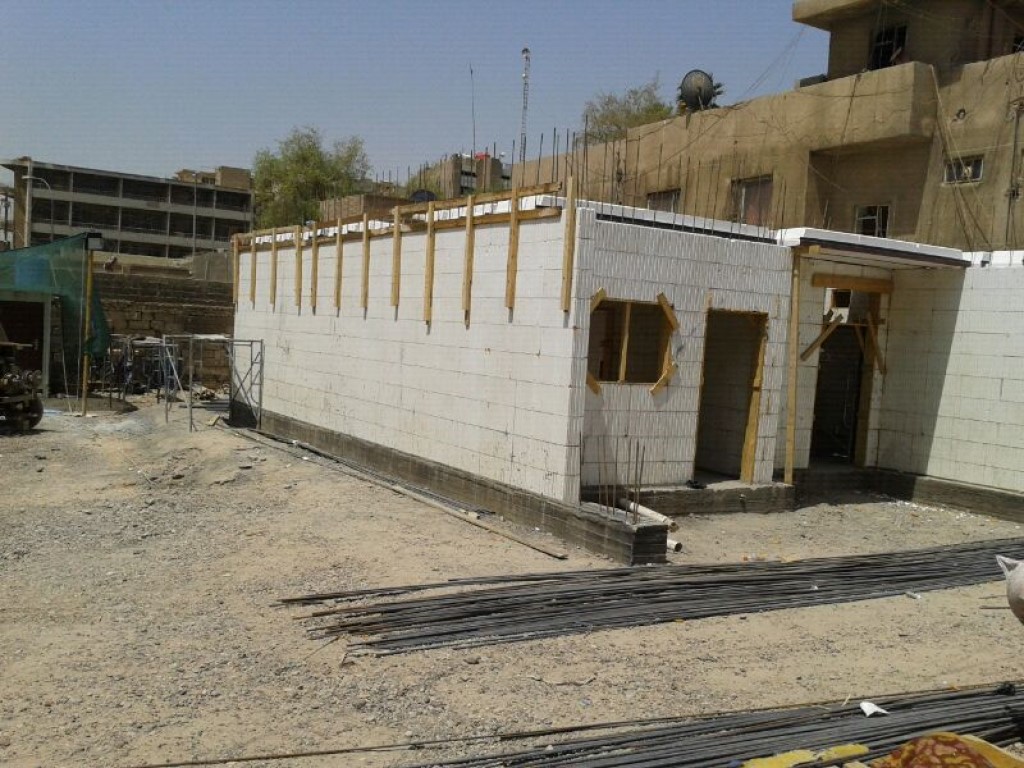

ICF ( Insulated Concrete Form),is a system of formwork for reinforced concrete usually made with a rigid thermal insulation that stays in place as a permanent interior and exterior substrate for walls, floors, and roofs. The forms are interlocking modular units that are dry-stacked (without mortar) and filled with concrete. The units lock together somewhat like Lego bricks and create a form for the structural walls or floors of a building. ICF construction has become commonplace for both low rise commercial and high performance residential construction as more stringent energy efficiency and natural disaster resistant building codes are adopted

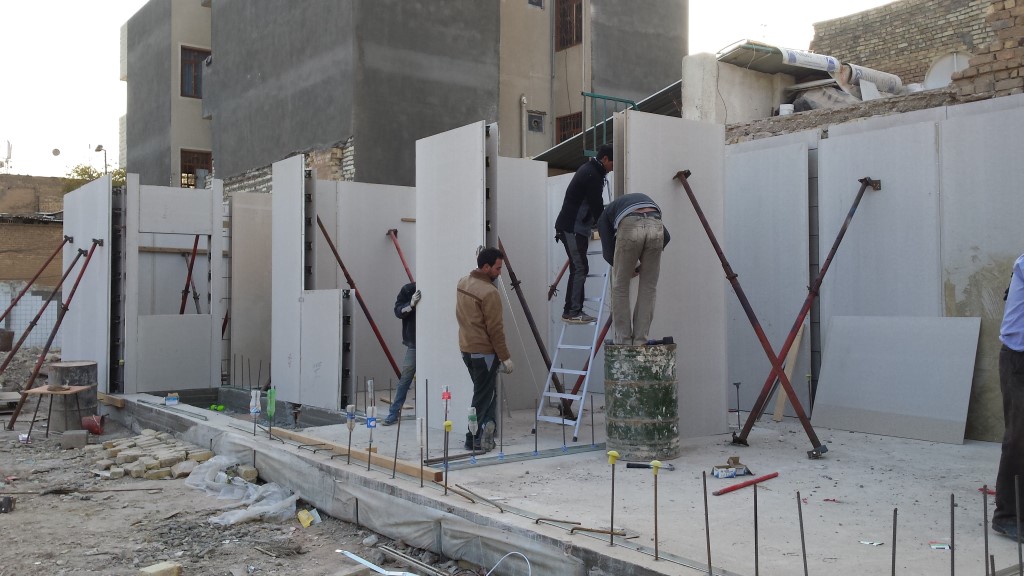

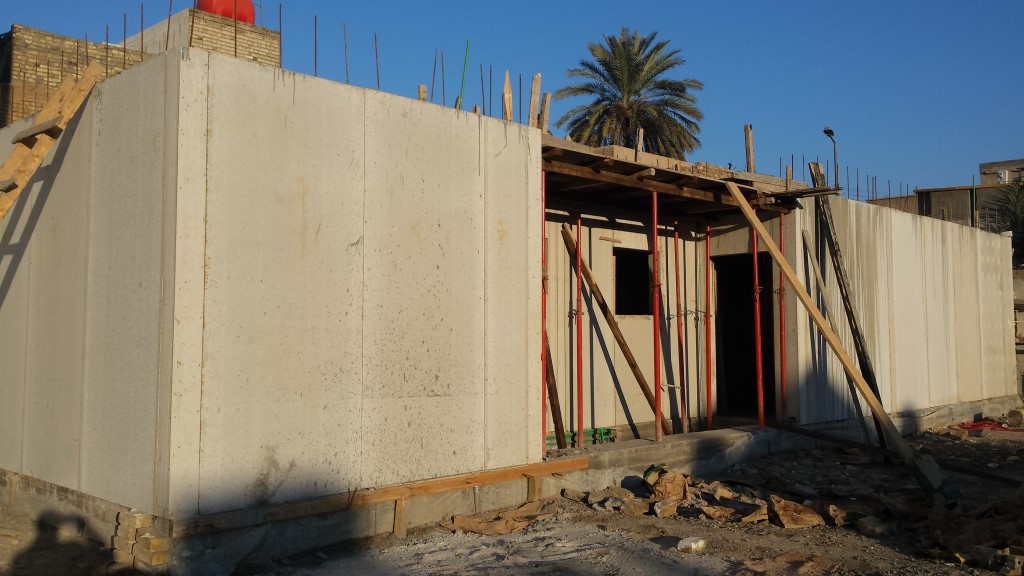

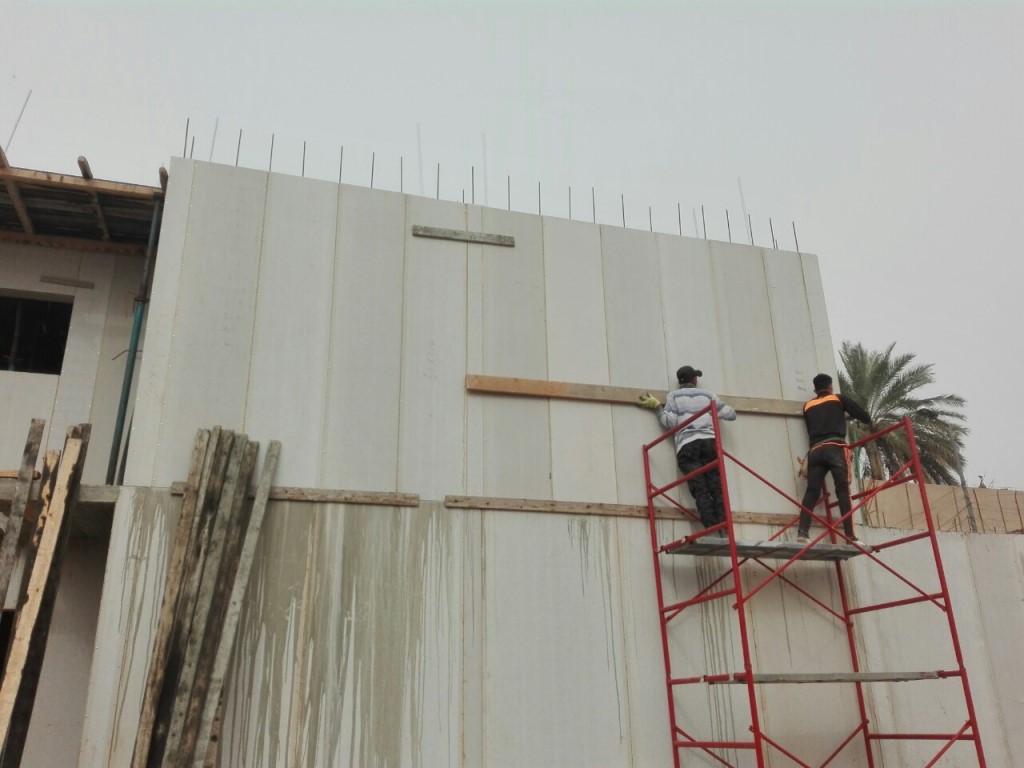

I.WALL SYSTEM PROJECT

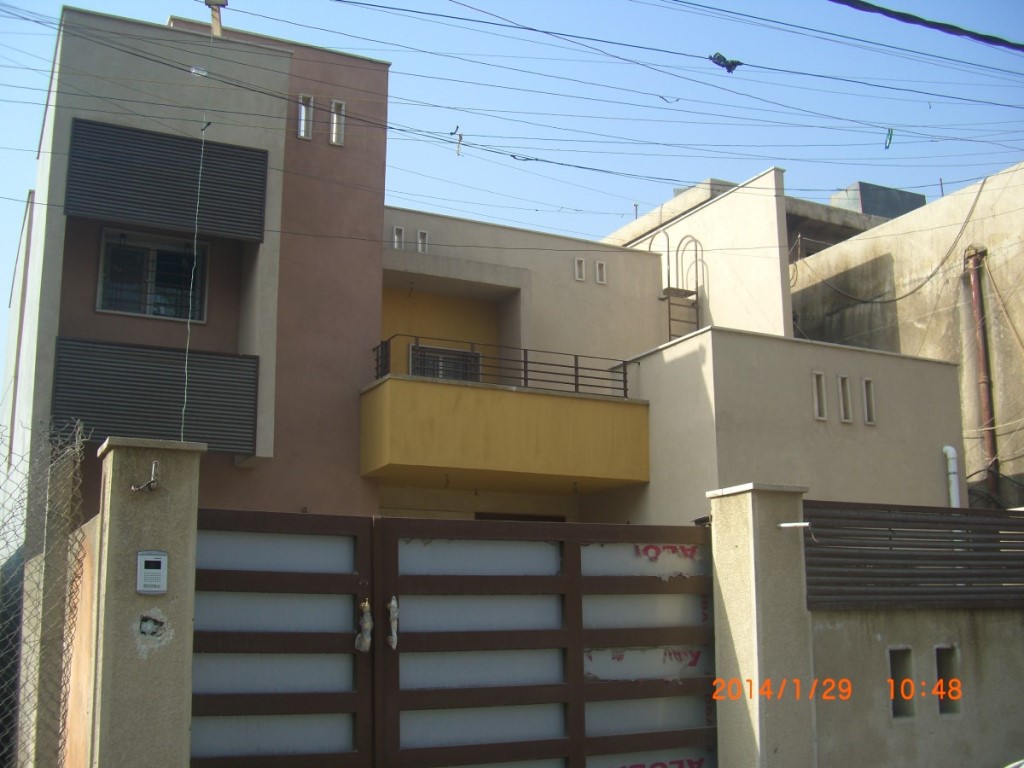

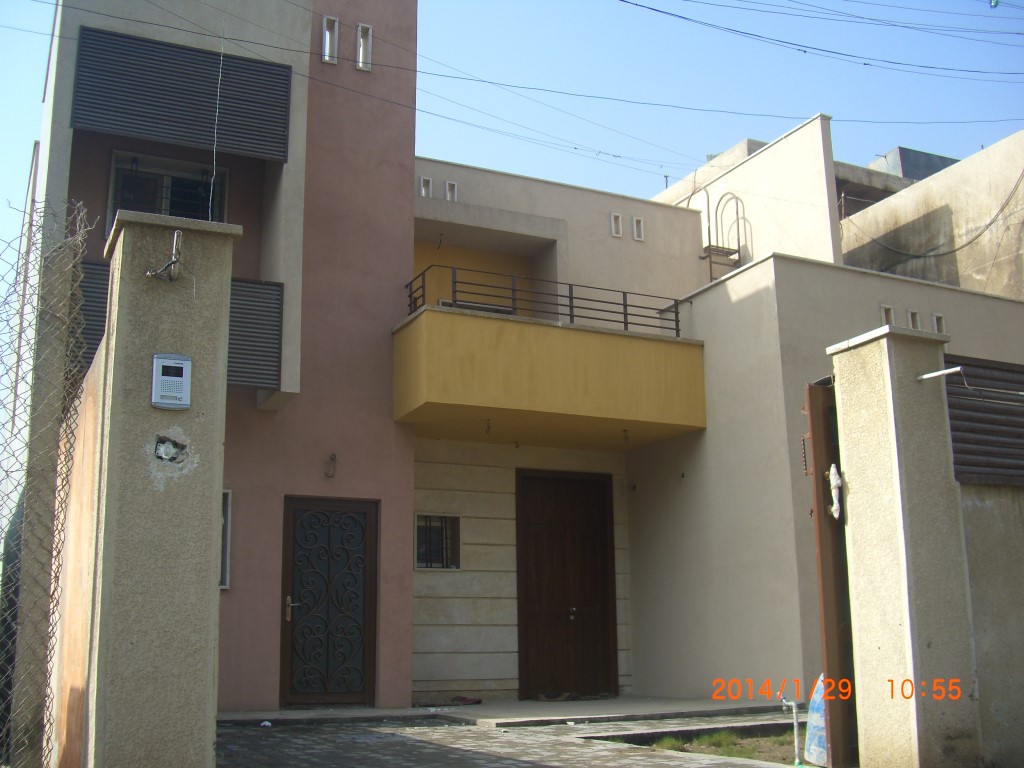

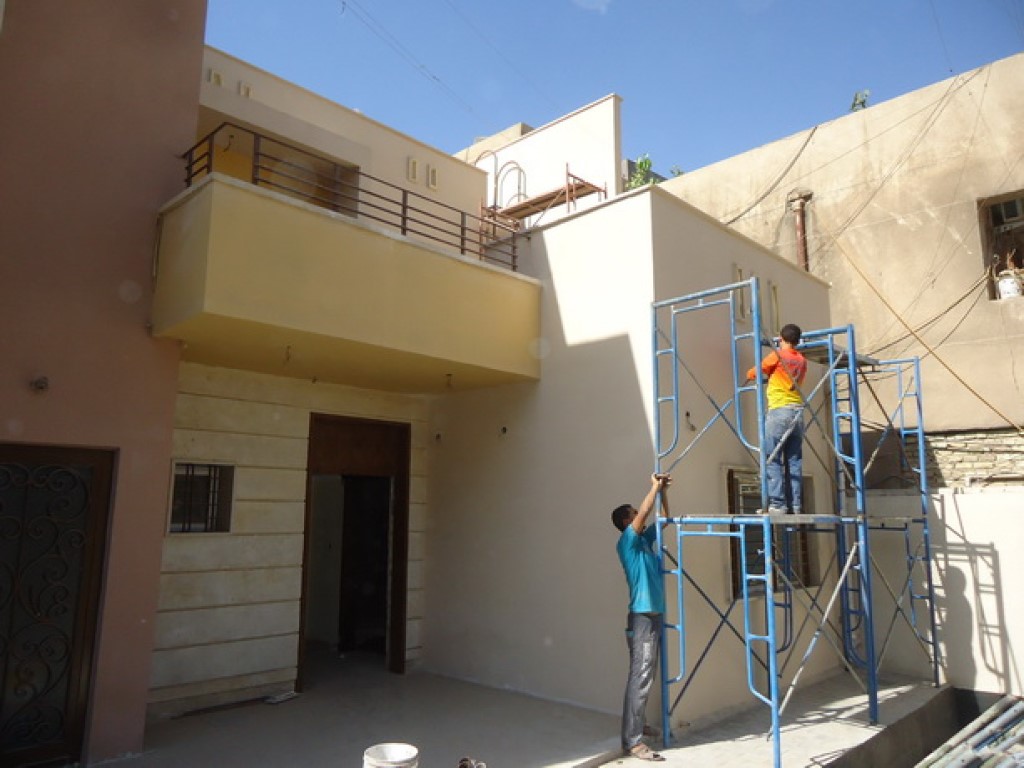

Project location: Baghdad, Iraq , Private House, :Site area: 100m2, Built Area: 270m2.

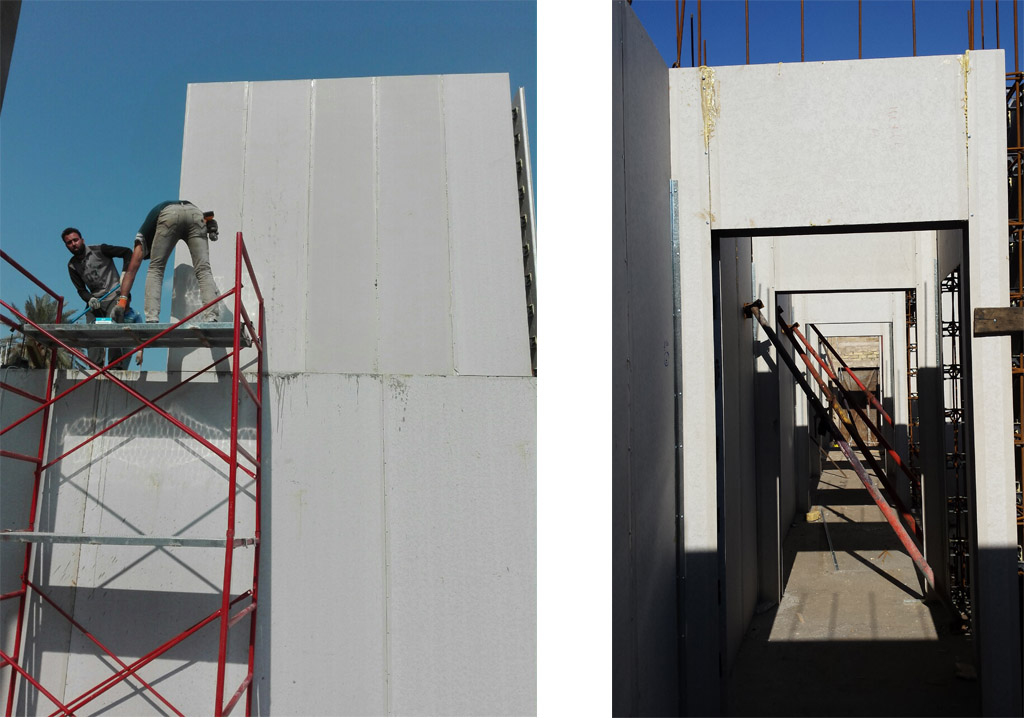

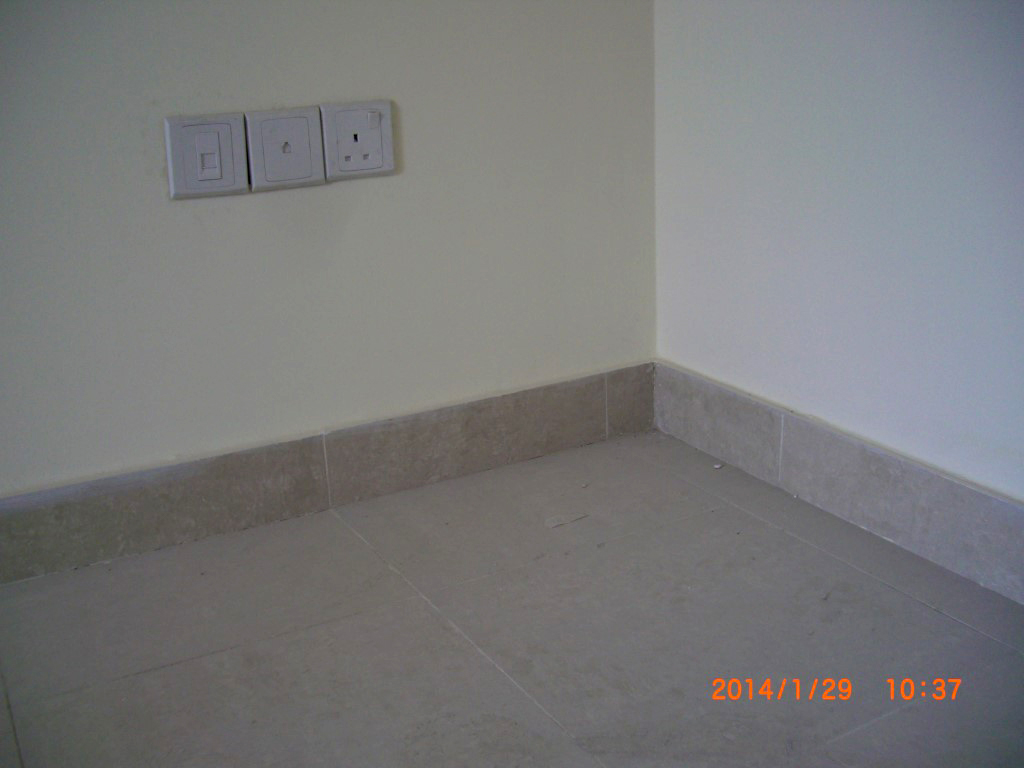

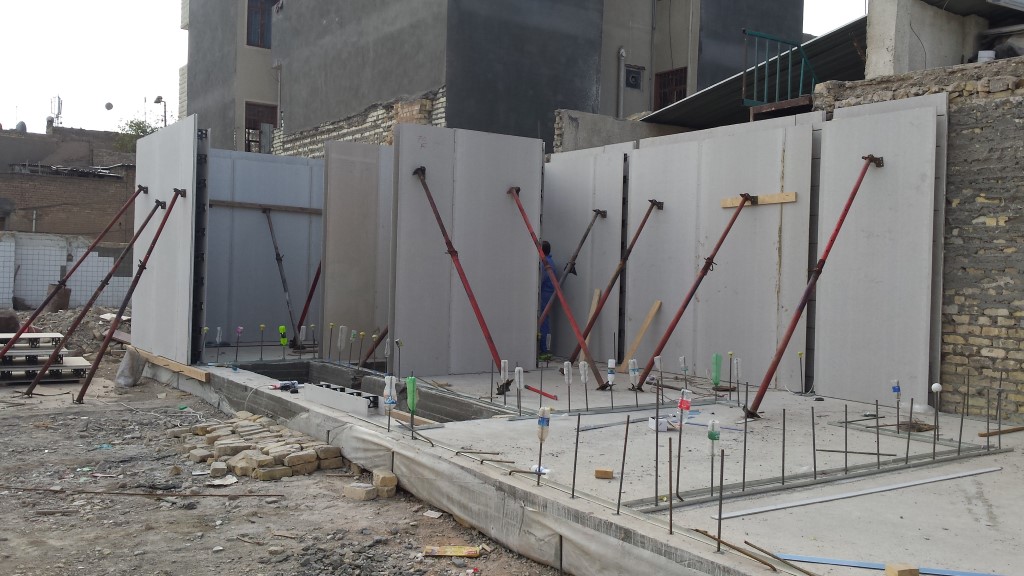

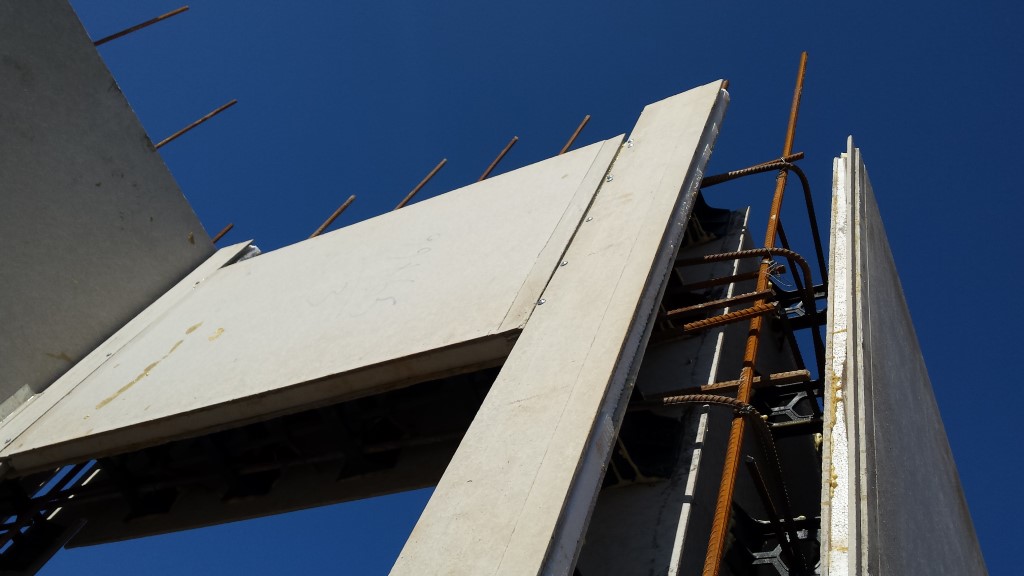

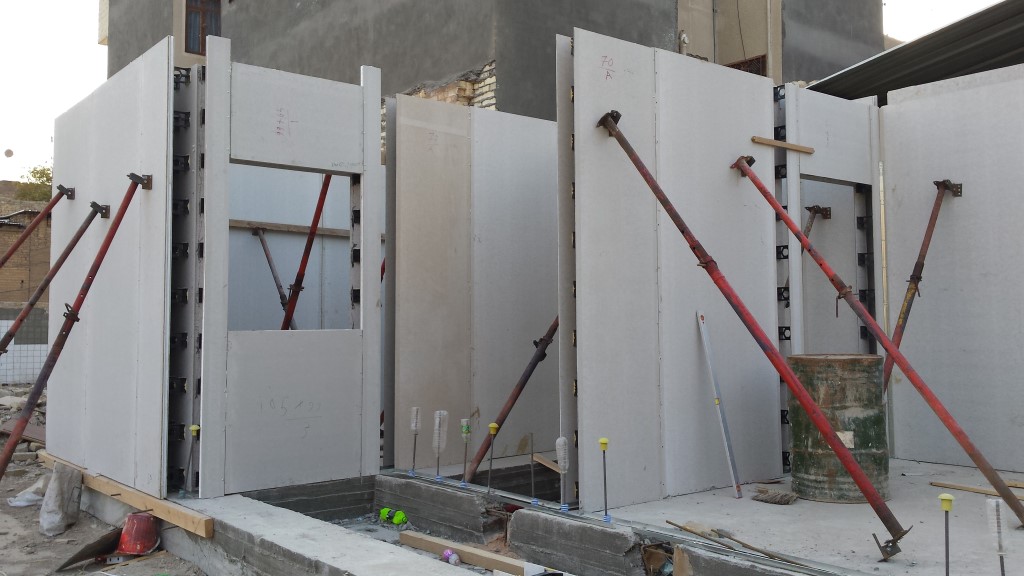

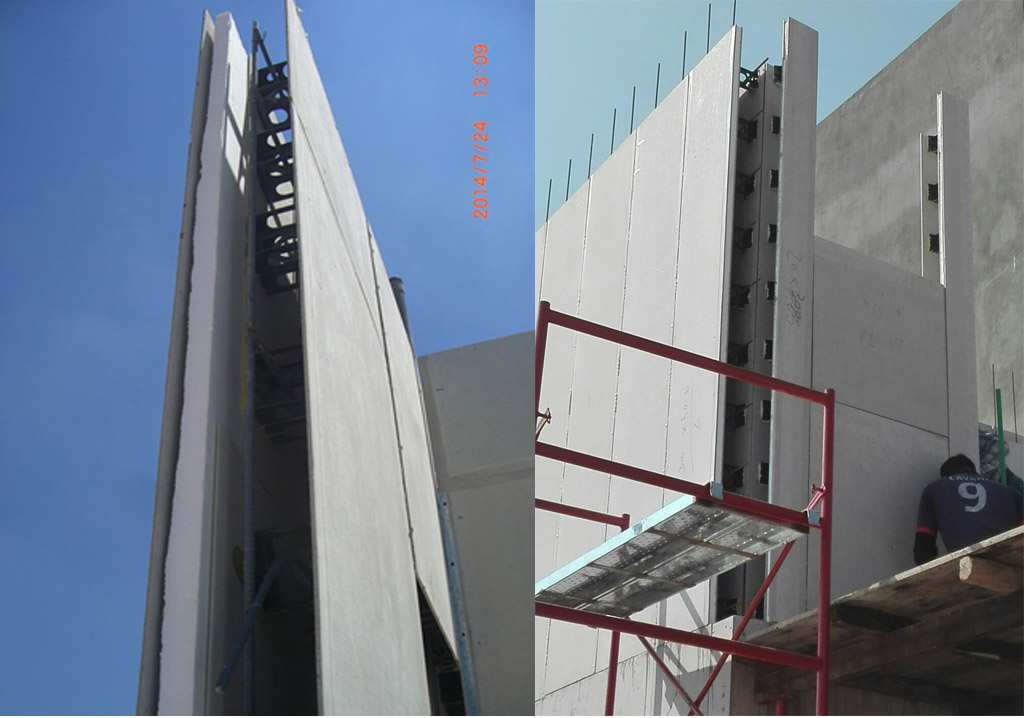

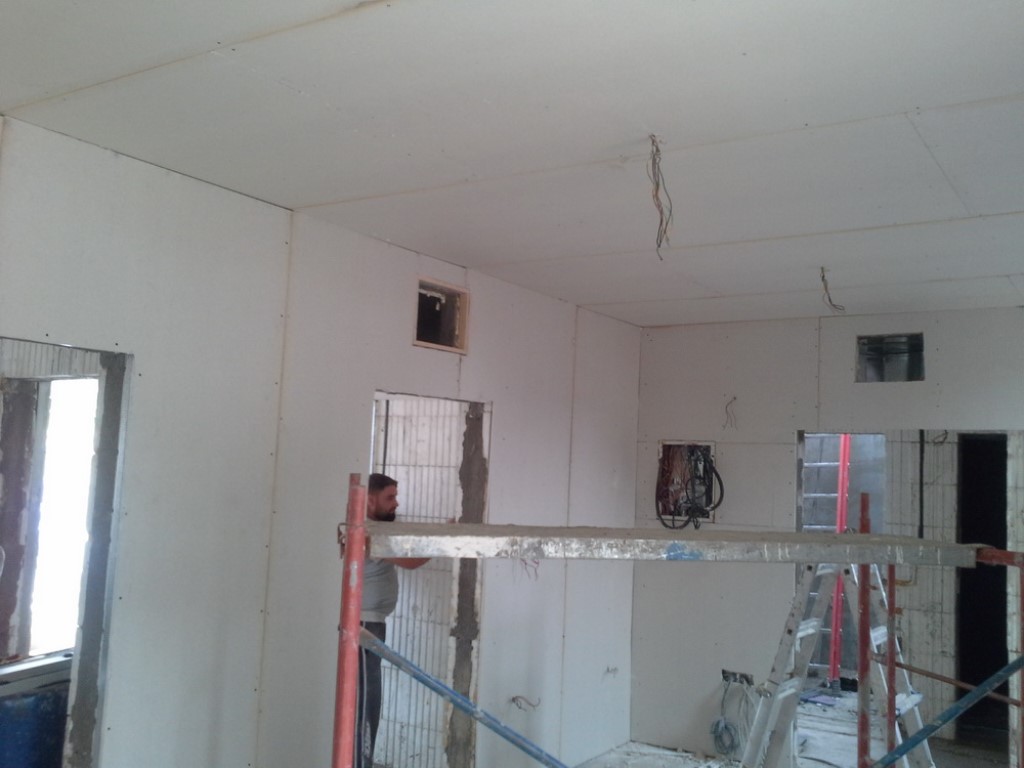

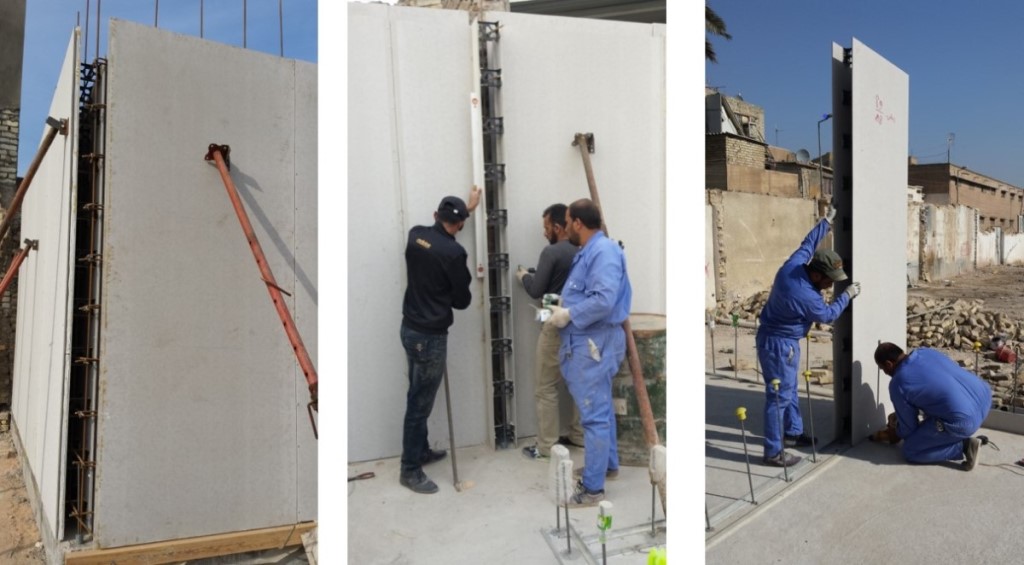

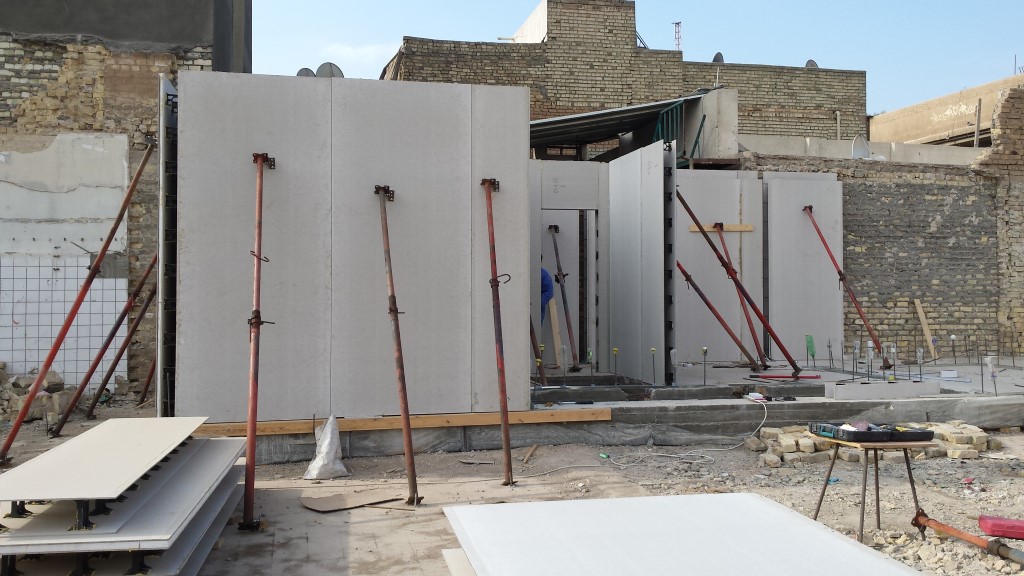

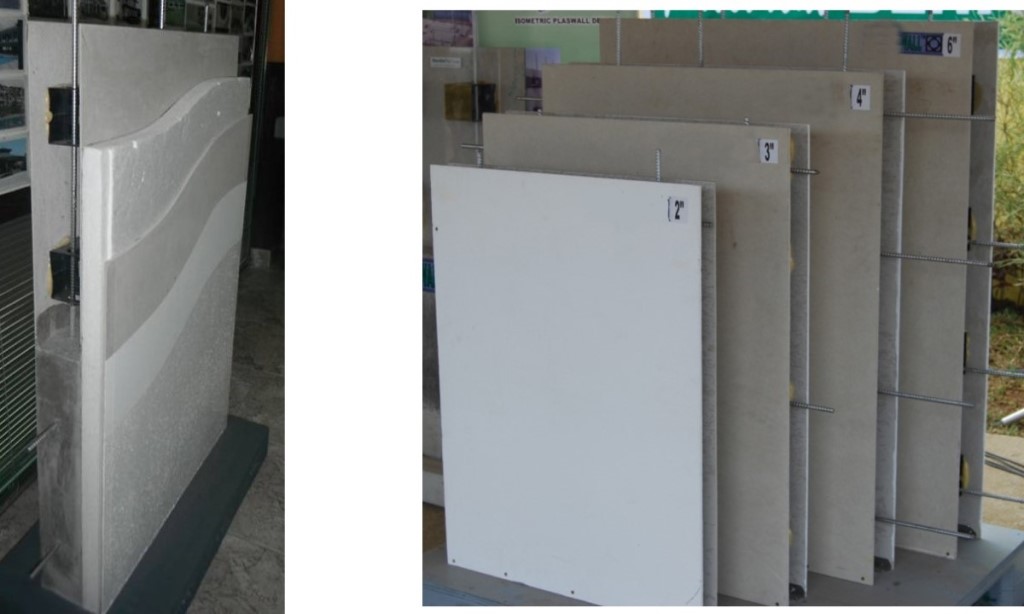

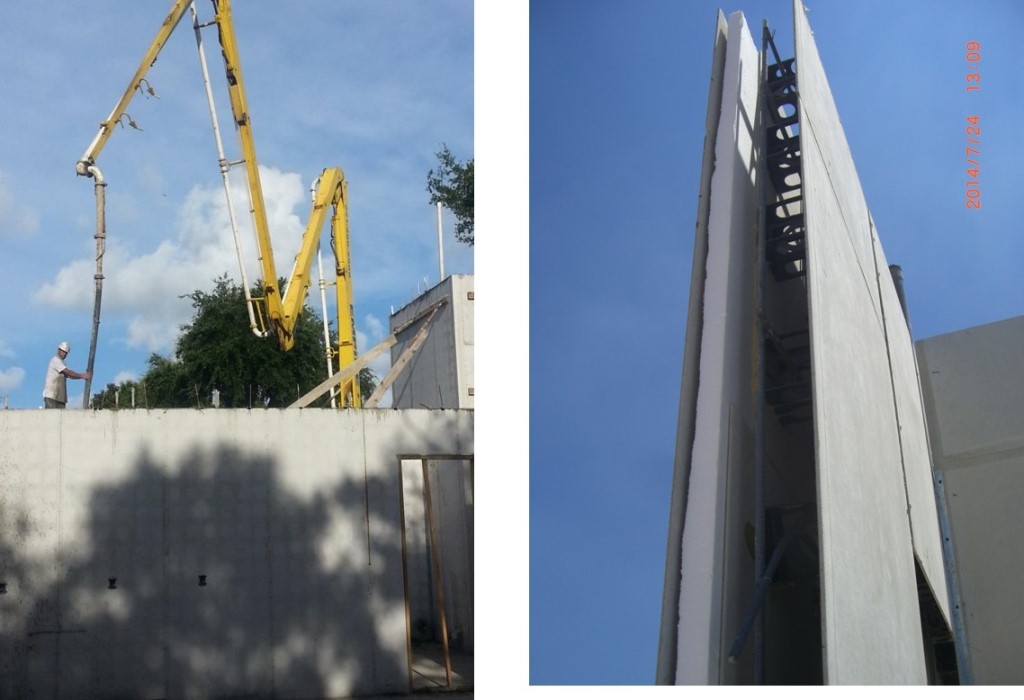

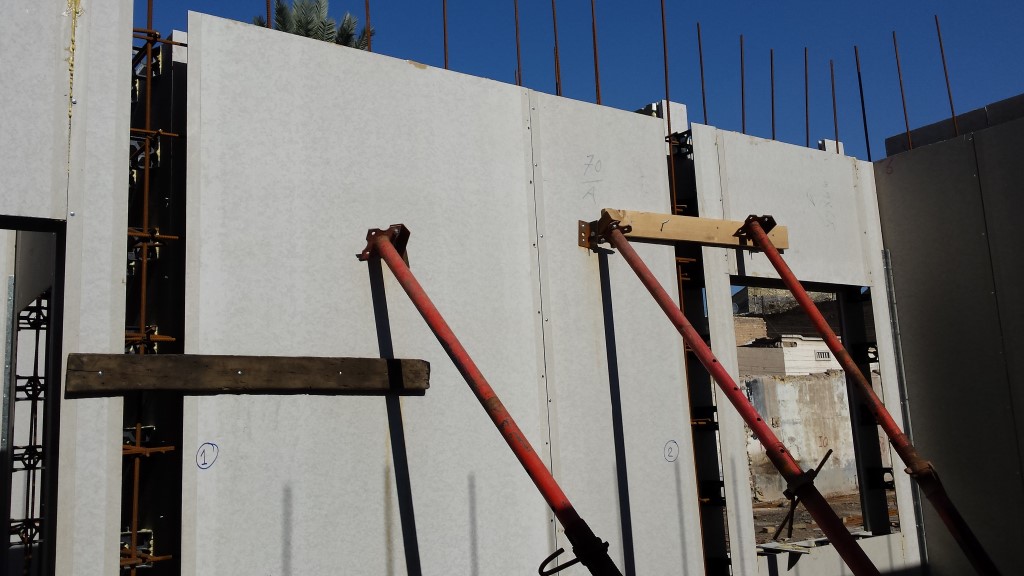

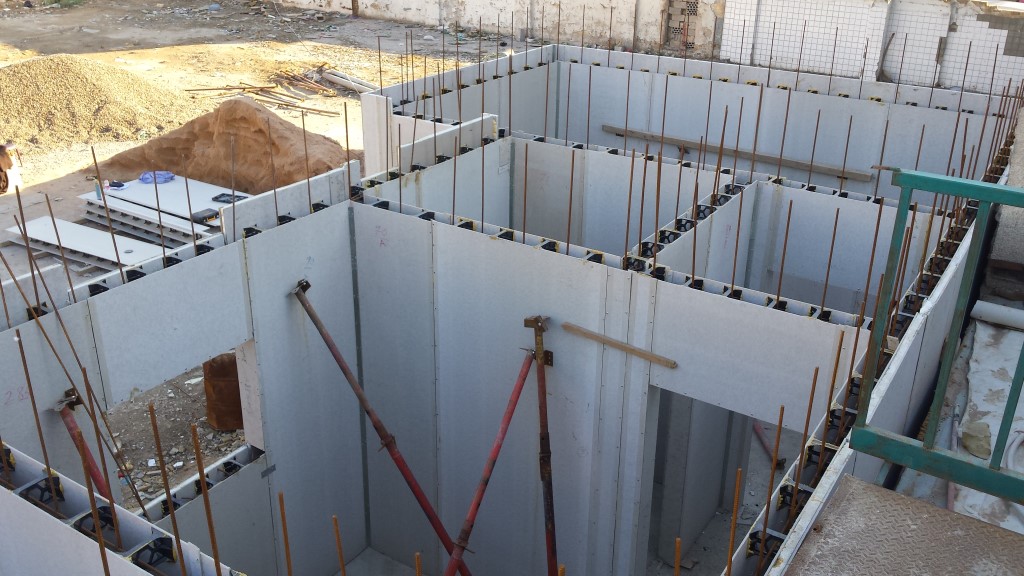

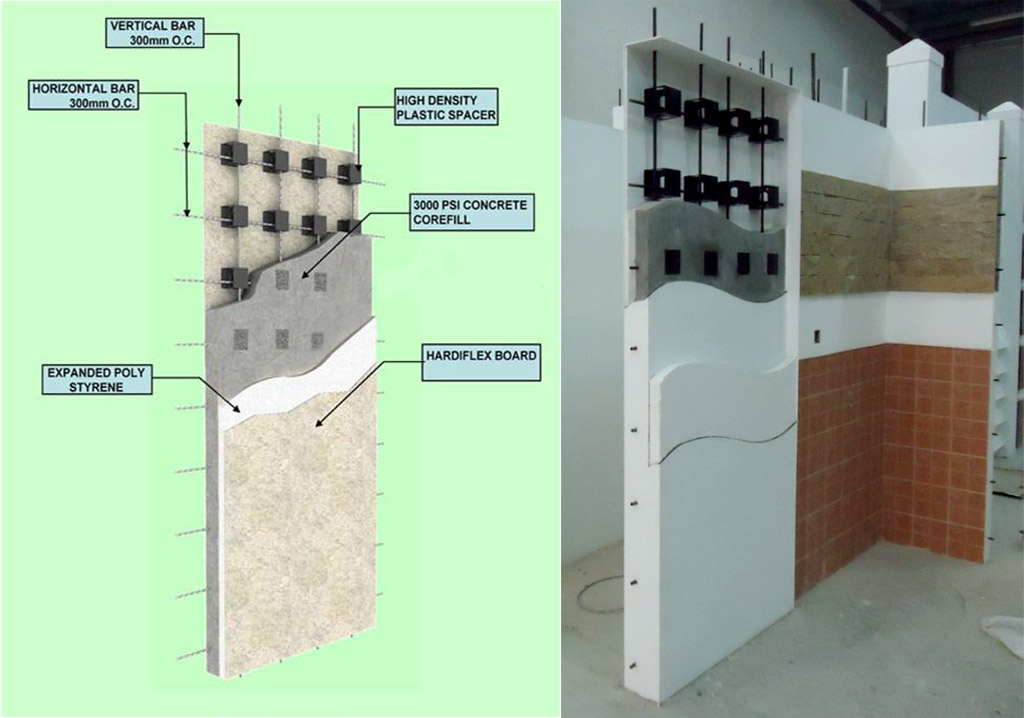

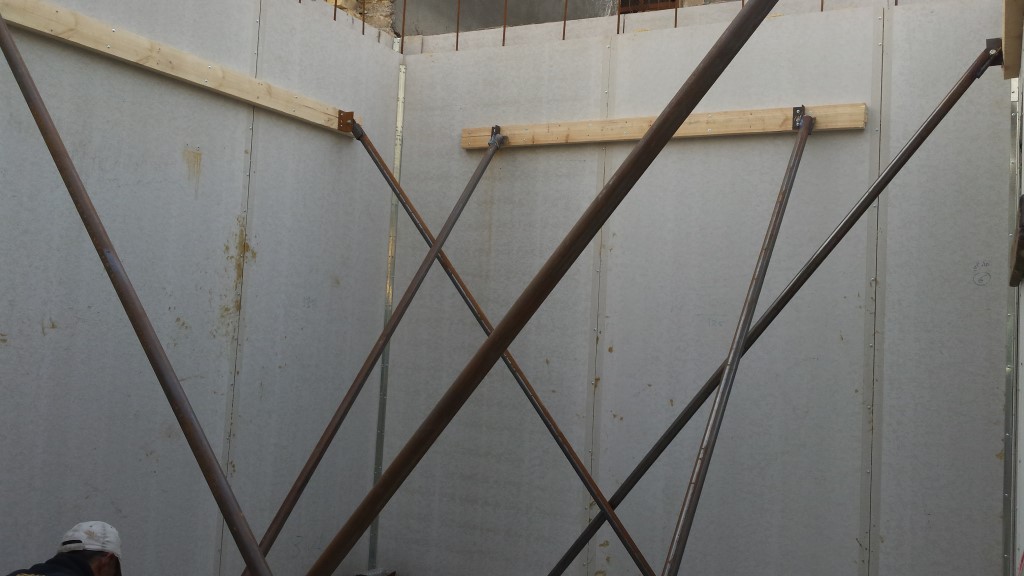

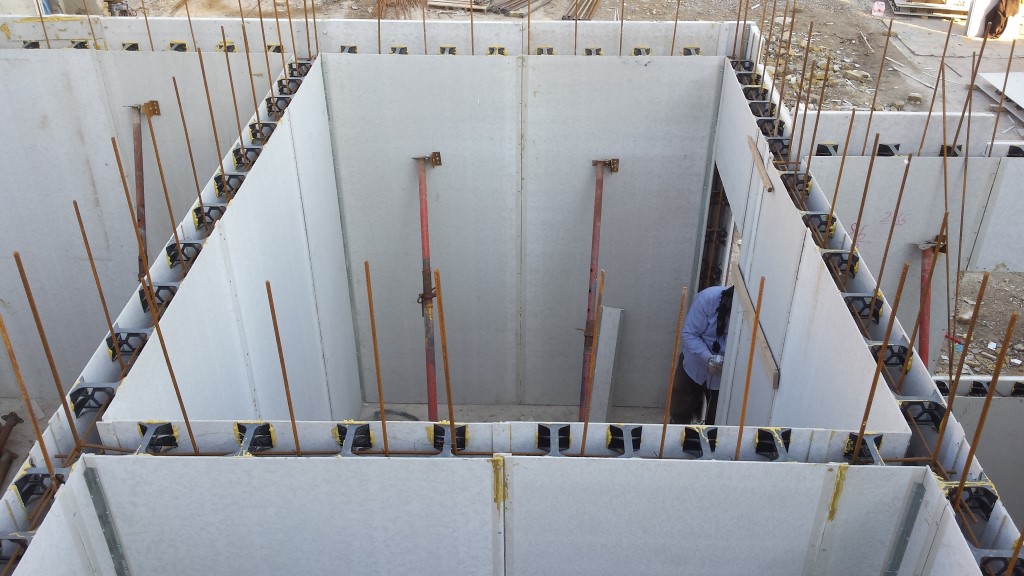

I.WALL is a new wall system composed of 2 FCB connected with high impact moulded inserts. A monolithic structure is then created by filling with concrete . Additional load capacity can be obtained by providing extra reinforcing bars or / increasing the grade of concret. The walls can be used as light weight partitions also, by filling with light weight concrete , like ( Foam concrete, EPS concrete.. ext ). The main advanatage of this wall system is a short time construction, thermal insulation, high quality finish, integated structure and competetitive costs. ( for more detailed specs , pleas contact us
